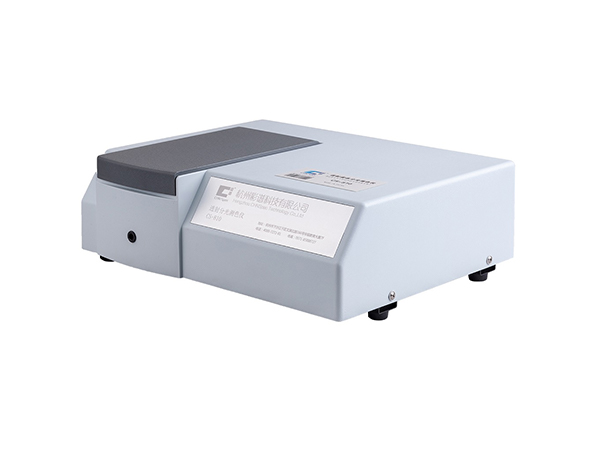

CS-810 Desktop Spectrophotometer

CS-810 Desktop Spectrophotometer

CS-810 transmission type liquid spectrophotometer is a high performance spectrometer specially designed for measuring liquid transmittance, absorbance, concentration, chromaticity and other parameters. The instrument adopts D/0 measurement
Products Inquiry

Description

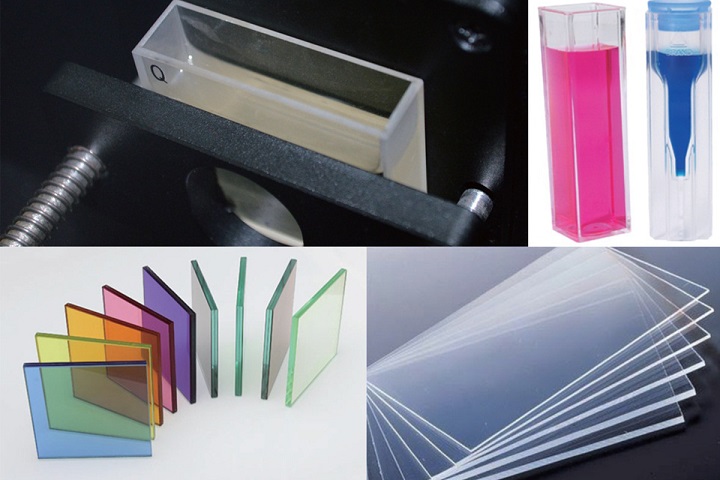

Suitable for color measurement of glass and liquid
The CS-810 transmission spectrophotometer is a high-performance spectrophotometer designed to measure parameters such as light transmission, absorbance, concentration, and chromaticity of materials.

It is suitable for transparent or translucent materials, such as glass and solutions.
彩谱台式分光测色仪CS-810
UV enhanced silicon photodiode
The measurement range is expanded from 0 ~ 100% to 0 ~ 200%


Platinum cobalt, Gardner chroma
Platinum cobalt chroma is suitable for measuring the color of transparent or liquid close to platinum cobalt number. This color feature is usually transparent or brownish yellow

Gardner Color Code is suitable for colors with darker yellow or brown color of platinum cobalt

彩谱台式分光测色仪CS-810
Color management software
It is convenient for quality monitoring and color data management of enterprises

It can digitize users' color management, compare color differences, generate test reports, provide a variety of color space measurement data, and customize customers' color management

彩谱台式分光测色仪CS-810
Technical parameter

Model
CS-810
Illumination
Illumination: d/0 (diffused Illumination, 0 degree viewing) (conform to CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition C standard)

Integrating sphere
Φ 40mm, avian-d fully diffuse surface coating
Lighting source
CLEDs(Full band balanced LED light source)
Sensor
Dual optical path sensor array sensor
Wavelength range
400nm-700nm
Wavelength interval
10nm
Half band width
5nm
Test range
0-200%
Reflectance Resolution
0.01%
Observer angle
2°/10°
Illuminants
A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CMF,U30,DLF,NBF,TL83,TL84

Data being displayed
Transmittance graph/value, chromatic value, color difference values, color assessment results, color tendency, history color value simulation, manual input standard sample, generate measurement reports

Measurement interval
1S
Measurement time
1S
Measuring aperture
Φ10mm
Color space
CIELab,LCh,CIELuv,XYZ,Yxy,transmissivity,HunterLabMunsell,MI,CMYK
Color difference formula
ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00
Other indices
WI(ASTME313-00,ASTME313-73,CIE/ISO,Hunter,Taube Berger Stensby),
YI(ASTMD1925,ASTME313-00,ASTME313-73),Tint(ASTME313-00),Isomorphism index milm,

color fastness, color fastness, APHA, Pt Co, Gardner, Saybolt, astmcolor, Saybolt, ASTM Color


Repeatability
Transmittance, standard deviation within 0.08% Chromaticity value: ΔE*ab 0.015 (When measuring air 30 x at 5-second intervals after air calibration), max. 0.03

Inter station difference※※
ΔE*ab less than ≤0.2
Data interface
USB
Store data
Mass storage (PC)
Light source lifetime
5 years, 1.5 million tests

Size
475*340*150mm(L*W*H)
Weight
About 7kg
Operating temperature
0 ~ 45 ℃, relative humidity 80% or lower (at 35 ° C), no water vapor condensation
Storage temperature
-25 ° C to 55 ° C, relative humidity 80% or less (at 35 ° C), no moisture condensation
Standard accessories
Power line, color management software, driver software, data line, black correction board, 40 * 10mm, cuvette
Optional Accessories
40 * 33mm cuvette (for ASTM color), 40 * 100mm cuvette (measuring Saybolt)
※ After correction, measure the standard deviation of air for 30 times at an interval of 5S

※※ Maximum value of measurement results for 12 BCRA ceramic standard color plates
